What factors affect the charging speed of an electric vehicle charger?

The core contradiction of charging speed is essentially the ultimate challenge of energy transmission efficiency. When the user inserts the charging gun into the vehicle, the current and voltage output by the charging pile must accurately match the "appetite" of the vehicle battery. For example, an electric car equipped with an 800V high-voltage platform can theoretically replenish 80% of its power in 15 minutes through a 350kW supercharging pile, but if an old charging pile that only supports 400V architecture is used, the power may drop sharply to below 150kW. This "barrel effect" depends not only on the hardware capabilities of the charging pile, but also on the real-time regulation of the on-board battery management system (BMS). BMS is like a "smart butler" for the battery, continuously monitoring the cell temperature, voltage balance and state of charge (SOC) during the charging process. When it is detected that the temperature of a cell exceeds 45°C, the system will immediately reduce the charging power to prevent thermal runaway-this means that even if the same supercharging pile is used in the hot summer, the vehicle's charging speed may be more than 30% slower than in winter.

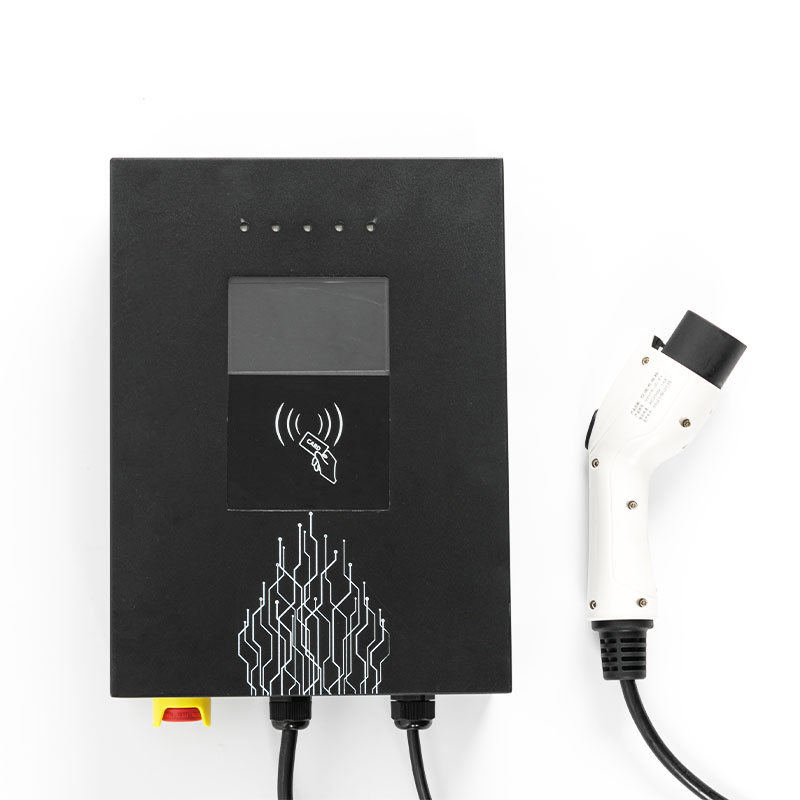

Electric Vehicle Chargers

The physical properties of the battery itself set an insurmountable "ceiling" for the charging speed. When lithium-ion batteries are close to full charge, the risk of lithium metal precipitation at the anode increases sharply, so all electric vehicles are forced to enter the "trickle charge" mode after the battery reaches 80%. This protection mechanism causes the charging time of the last 20% to be comparable to the first 80%. More subtly, batteries of different chemical systems have completely different tolerances to fast charging: although lithium iron phosphate batteries (LFP) are low-cost, their lithium diffusion rate is slow, and the charging speed at low temperatures is often 40% lower than that of ternary lithium batteries (NCM/NCA); and new batteries with silicon-doped negative electrodes can increase energy density, but may limit the number of fast charging cycles due to silicon particle expansion problems. These contradictions force automakers to find a balance between "charging speed", "battery life" and "cost control".

The coordination ability of infrastructure is another "invisible shackle" that is often overlooked. The actual output power of a DC fast charging pile with a nominal power of 150kW may be subject to the instantaneous power supply capacity of the power grid. When multiple charging piles are running at the same time during peak hours, the transformer load approaches the critical value, and the charging station has to reduce the output of each pile through dynamic power allocation. This phenomenon is particularly obvious in old urban areas - according to data from a European charging operator, the actual charging power during the evening peak period is 22% lower than the nominal value on average. The fragmentation of charging interface standards further exacerbates efficiency loss. If a model using Tesla's NACS interface uses a charging pile with the CCS standard, it needs to convert the protocol through an adapter, which may cause 5%-10% communication delay and power loss. Although wireless charging technology can get rid of the limitations of physical interfaces, its energy transmission efficiency is currently only 92%-94%, which is 6-8 percentage points lower than wired charging. This is still an unacceptable shortcoming for supercharging scenarios that pursue extreme efficiency.

The future breakthrough direction may lie in the technological revolution of "full-link collaborative optimization". The 270kW battery preheating technology jointly developed by Porsche and Audi can heat the battery from -20℃ to the optimal operating temperature of 25℃ 5 minutes before charging, increasing the charging speed in low temperature environments by 50%. The "all-liquid-cooled super-charging architecture" launched by Huawei not only reduces the size of the charging pile by 40% by incorporating all transformers, charging modules and cables into the liquid cooling circulation system, but also continuously outputs a high current of 600A without triggering overheating protection. What is more noteworthy is that technological changes on the power grid side are reshaping the charging ecology: the "photovoltaic storage and charging integrated" charging station tested in a laboratory in California can maintain a charging power of 250kW for up to 2 hours when the power grid is out of power through the cooperation of rooftop photovoltaics and energy storage batteries. This "decentralized" energy model may completely solve the limitation of power grid load on charging speed.
