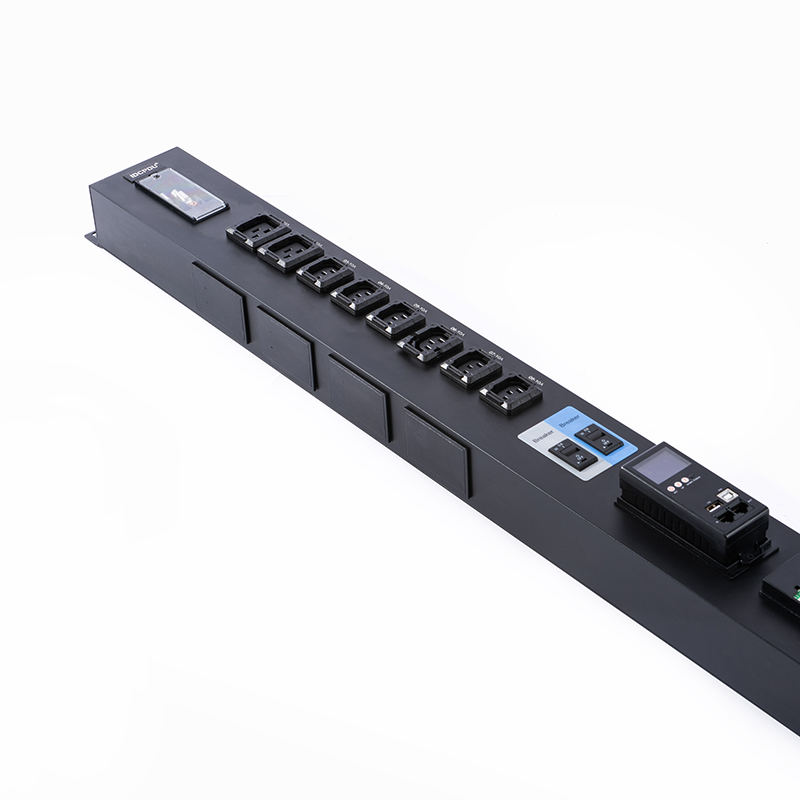

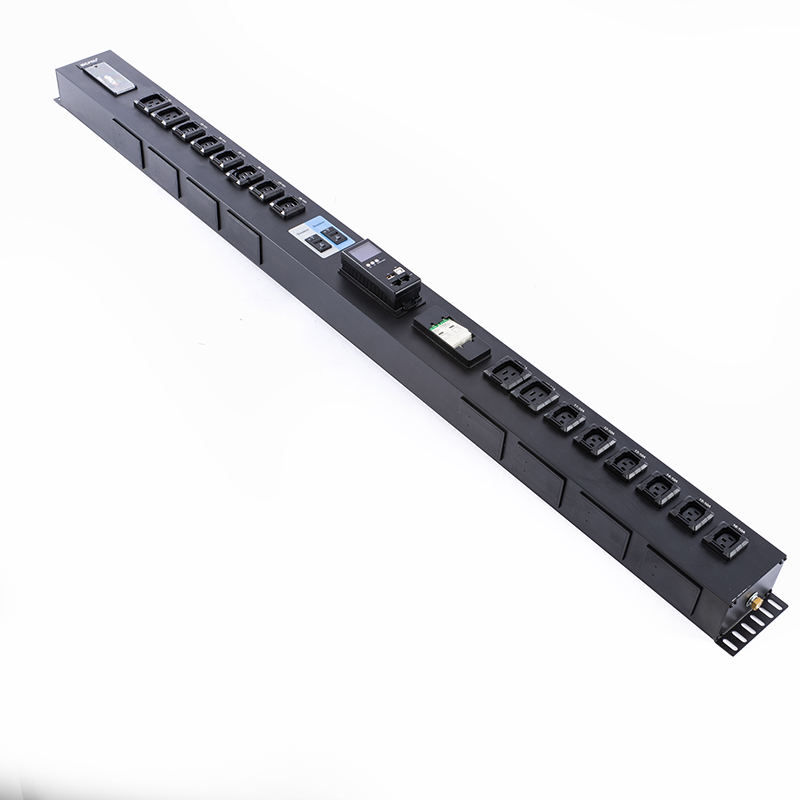

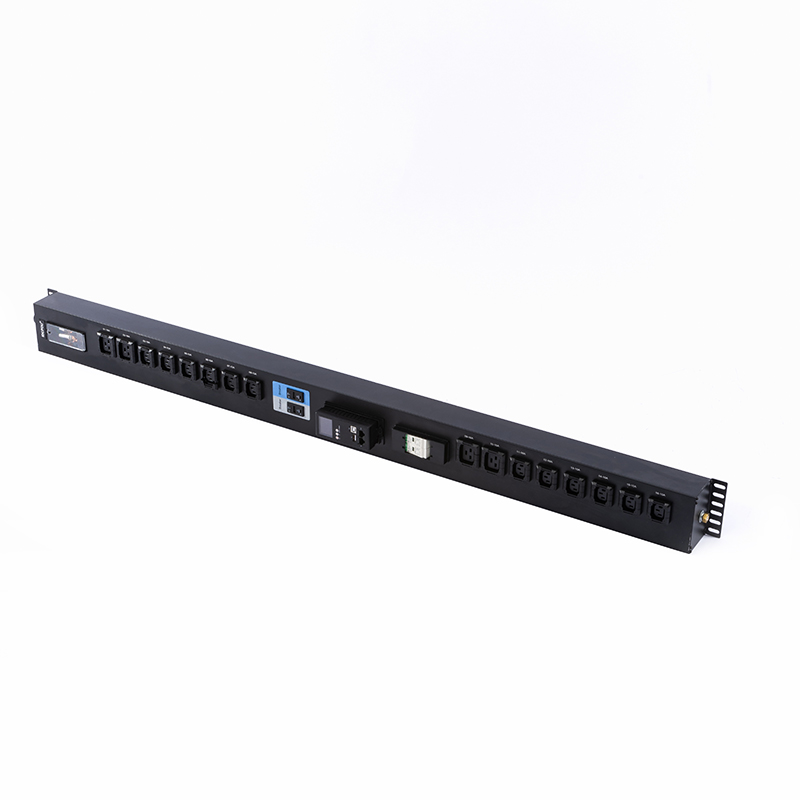

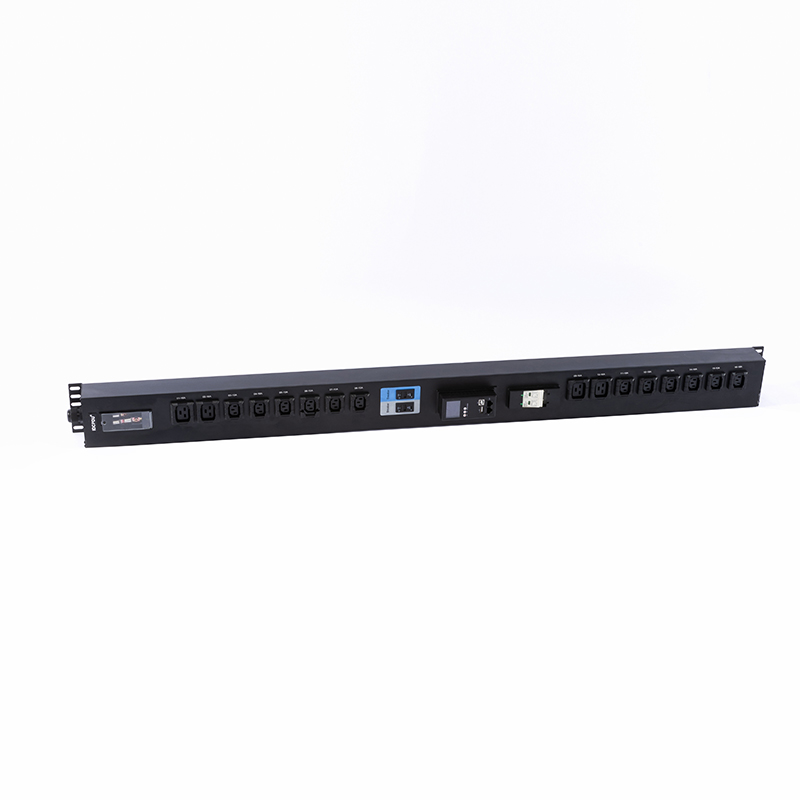

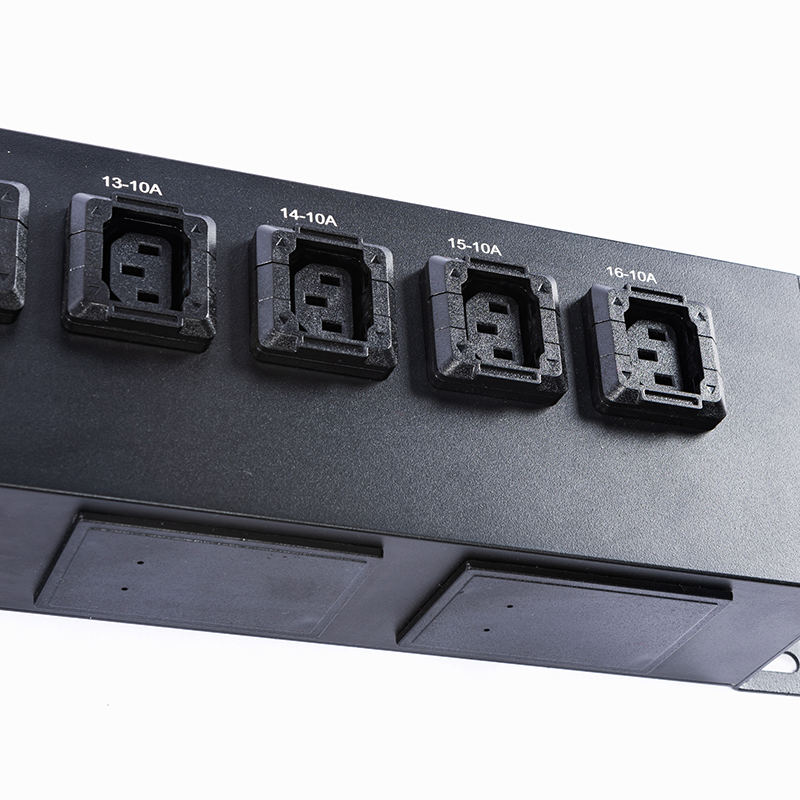

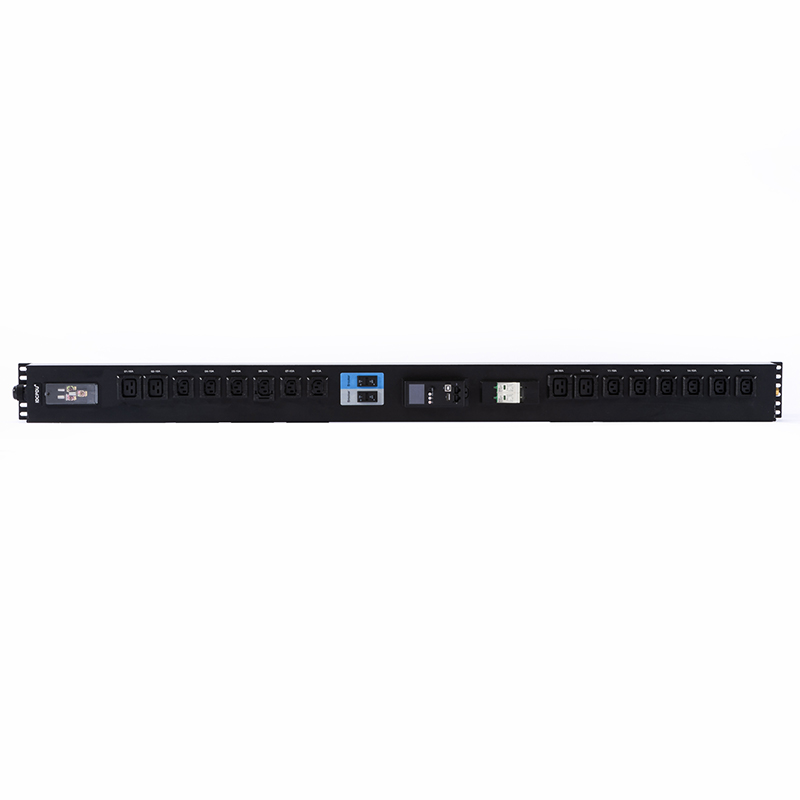

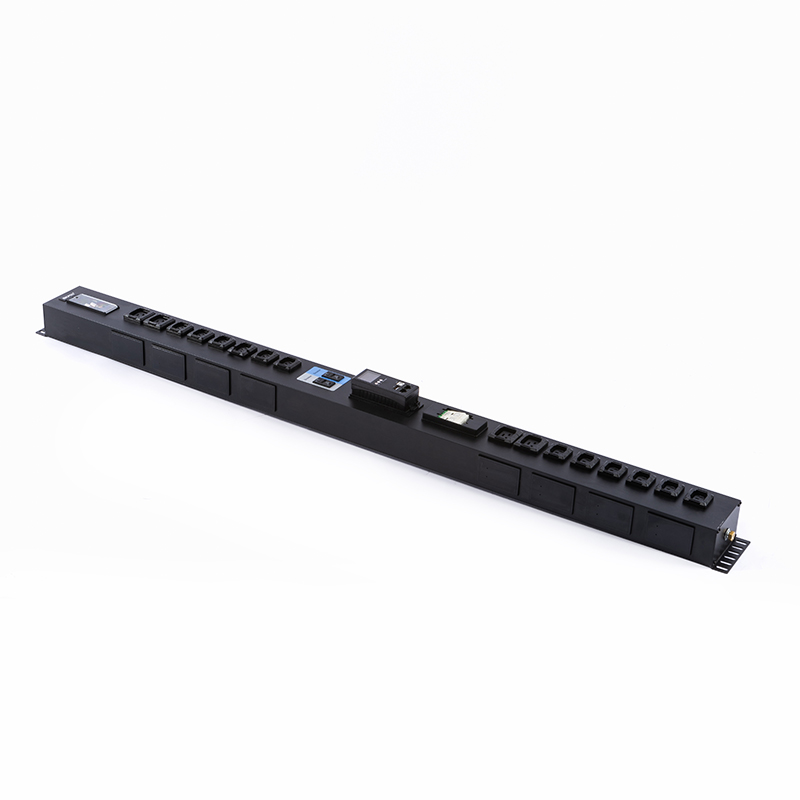

16 Outlets IEC C13 IEC C19 Lockable Socket Buckle equipped 2.5U Hot Swappable Surge Protection Vertical Modbus-RTU RS485 metered Rack PDU

PDU  PRODUCT  FEATURES

·Output AC 220V 16 channels 16A

·Provide RS485 bus

·Environmental monitoring: temperature and humidity, and threshold alarm

·The main circuit and branch circuits can be set for upper limit measurement and over-limit alarm

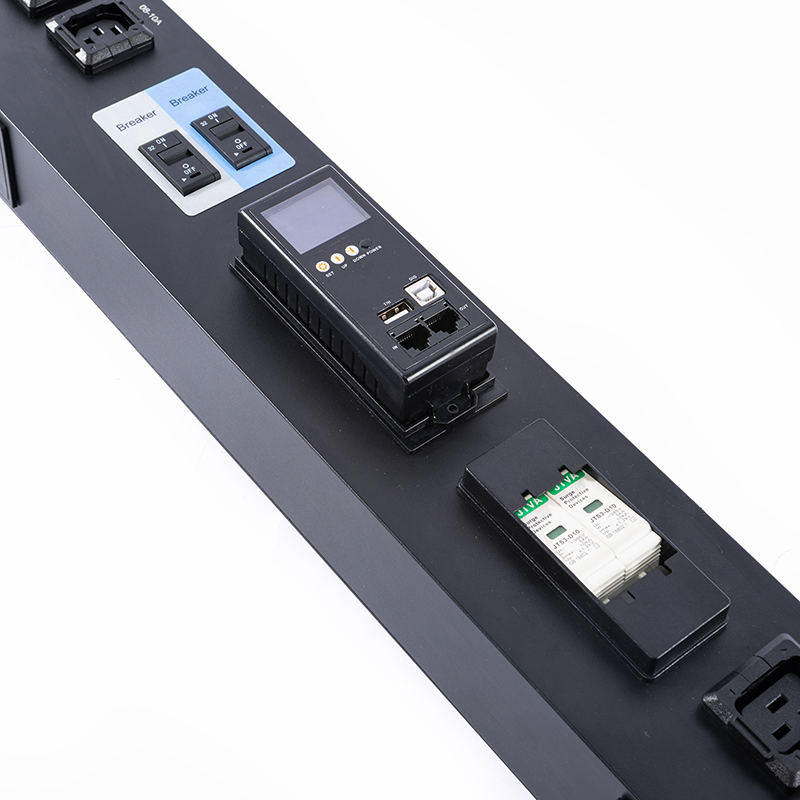

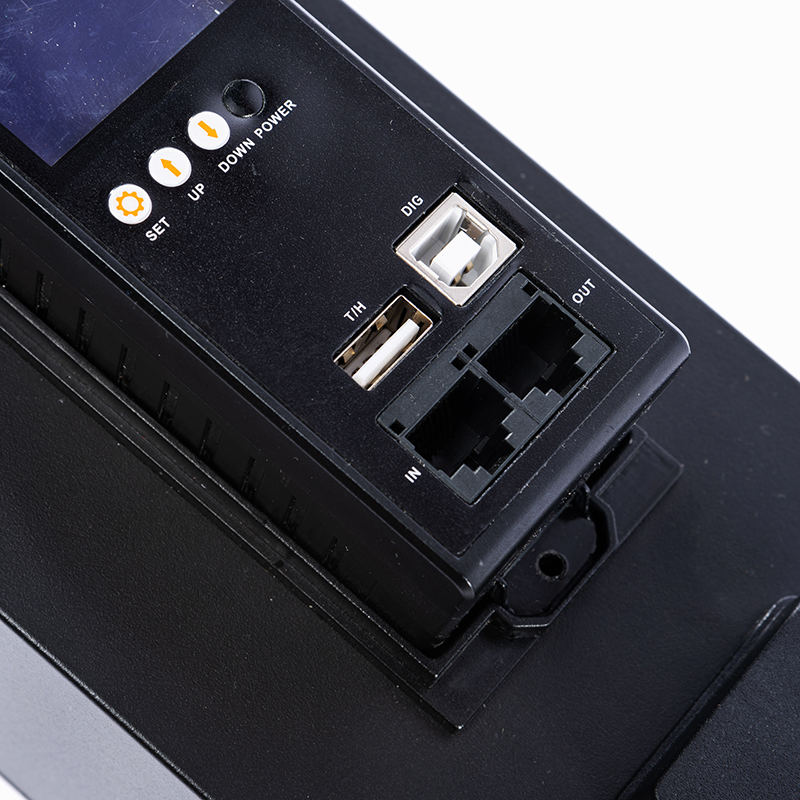

·Industrial-grade OLED display, current, voltage, power, energy, and switching status of the main circuit and branches

·Internal real-time clock, power-off time retention

·The whole machine has high reliability and strong anti-interference ability.

·Use high pressure resistant and flame retardant materials

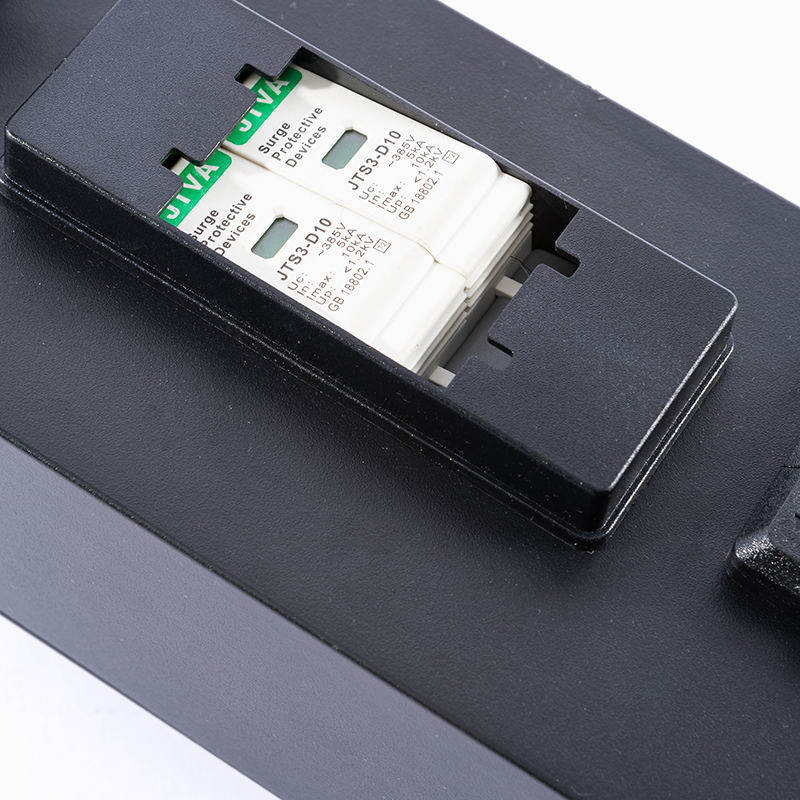

·180-265V wide voltage input, providing lightning and surge protection

·Support local viewing of voltage, total current, and alarm status;

·Support monitoring and viewing the voltage, current, and alarm status of each jack;

·Supports controlling the on/off of each output jack;

·Support customization of socket standards in most countries in the world;

·Output status indication

·Operating temperature -20-55c

·Operating humidity 10% 90% (non-condensing state)

·Working power supply: 85V ~ 264AC/DC;

·Accuracy level: Level 1;

·Measuring range: 0.5A~63A, 100~300V AC/DC;

·Current resolution: 0.01A

·Alarm function: current overcurrent alarm, the overcurrent alarm value can be set through the menu or communication

·The communication adopts MODBUS RTU protocol. The data format of one frame is: 1 start bit + 8 data bits + 1 stop bit. The baud rate is 9600 bit/S.

·OLED indicates the current status of each socket and equipment operation indication

·Nigital tube displays time and power parameter values

·PDU total current 32A, maximum 16A per channel
